RESIDENTIAL · PM SURYA GHAR
3 kW rooftop solar in Jajpur: array and inverter
A HELLOCON residential installation under PM Surya Ghar, with a rooftop solar array and a wall-mounted inverter.
- 3 kW
- PM Surya Ghar
- Jajpur
Project facts
- Location
- Jajpur district, Odisha
- System capacity
- 3 kW
- Application
- Residential rooftop solar
- Programme
- PM Surya Ghar
01 Site record
Array and indoor electrical equipment in Jajpur

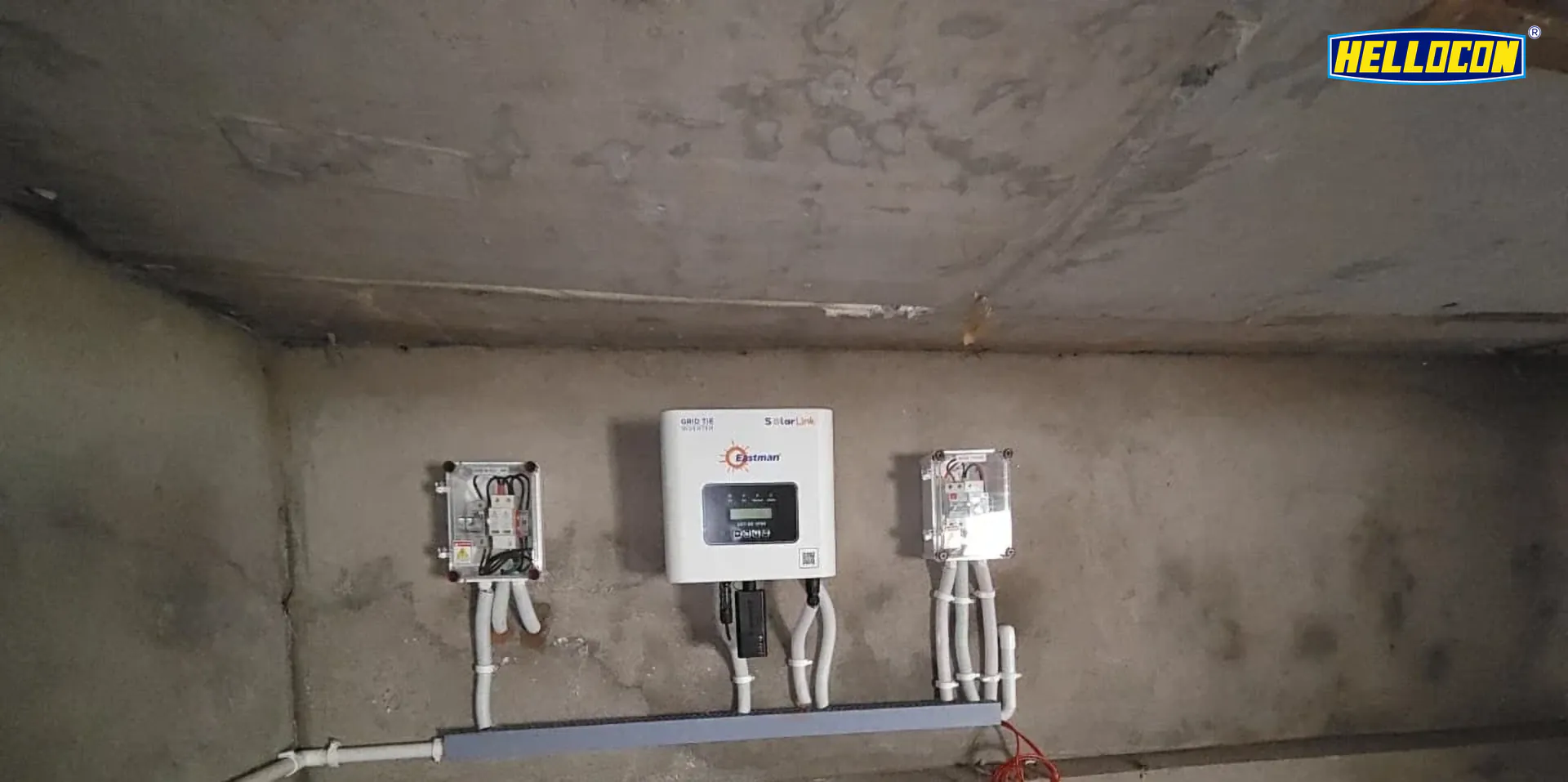

The inverter and adjacent protection enclosures sit on an indoor wall, with cable routes arranged below. The rooftop array appears on our PM Surya Ghar guide. A similar household should assess shade from surrounding vegetation and agree the inverter position, access and cable route during its own survey.
02 Scope
The installation
The homeowner’s roof provides space for a 3 kW solar installation. The photograph on this page shows the inverter and protection enclosures on an indoor wall. Solar panels, mounting and electrical integration work together as a complete system; their final arrangement follows the conditions at each home.
A project of this size should be assessed against the household’s electricity use, roof space, shading and connection requirements. The same rated capacity can produce different results at different sites.
Explore the Jajpur rooftop solar guide and local installations.
03 Your home
Planning a similar rooftop system
Start with a recent electricity bill and an assessment of the roof. Read our residential rooftop solar guide for the survey, equipment and installation process, and the PM Surya Ghar Odisha guide for the official application journey. Subsidy eligibility, approved vendor selection, inspection and metering are decided through the relevant government and DISCOM process.
Before agreeing a proposal, compare the equipment schedule, warranty terms, installation scope and maintenance responsibilities. A quotation should explain the roof arrangement, electrical protections, connection process and any work excluded from the quoted scope.
Frequently asked questions
What does the photograph on this page show?
It shows the wall-mounted inverter and protection equipment indoors. The rooftop array of the same 3 kW residential installation appears on our PM Surya Ghar guide.
Does a 3 kW system guarantee a zero bill?
No. Generation, household consumption, shading, weather and DISCOM charges affect the bill. Installed capacity alone cannot establish savings.
Can I use this project as a subsidy approval guarantee?
No. Each household follows the official application and eligibility process. A completed installation at another home does not guarantee approval or payment.
How do I plan a similar installation?
Request a site assessment with your location, recent electricity bill and roof details. The proposed capacity and equipment should follow your own site’s requirements.
