3 kW rooftop solar in Jajpur: wall-mounted inverter

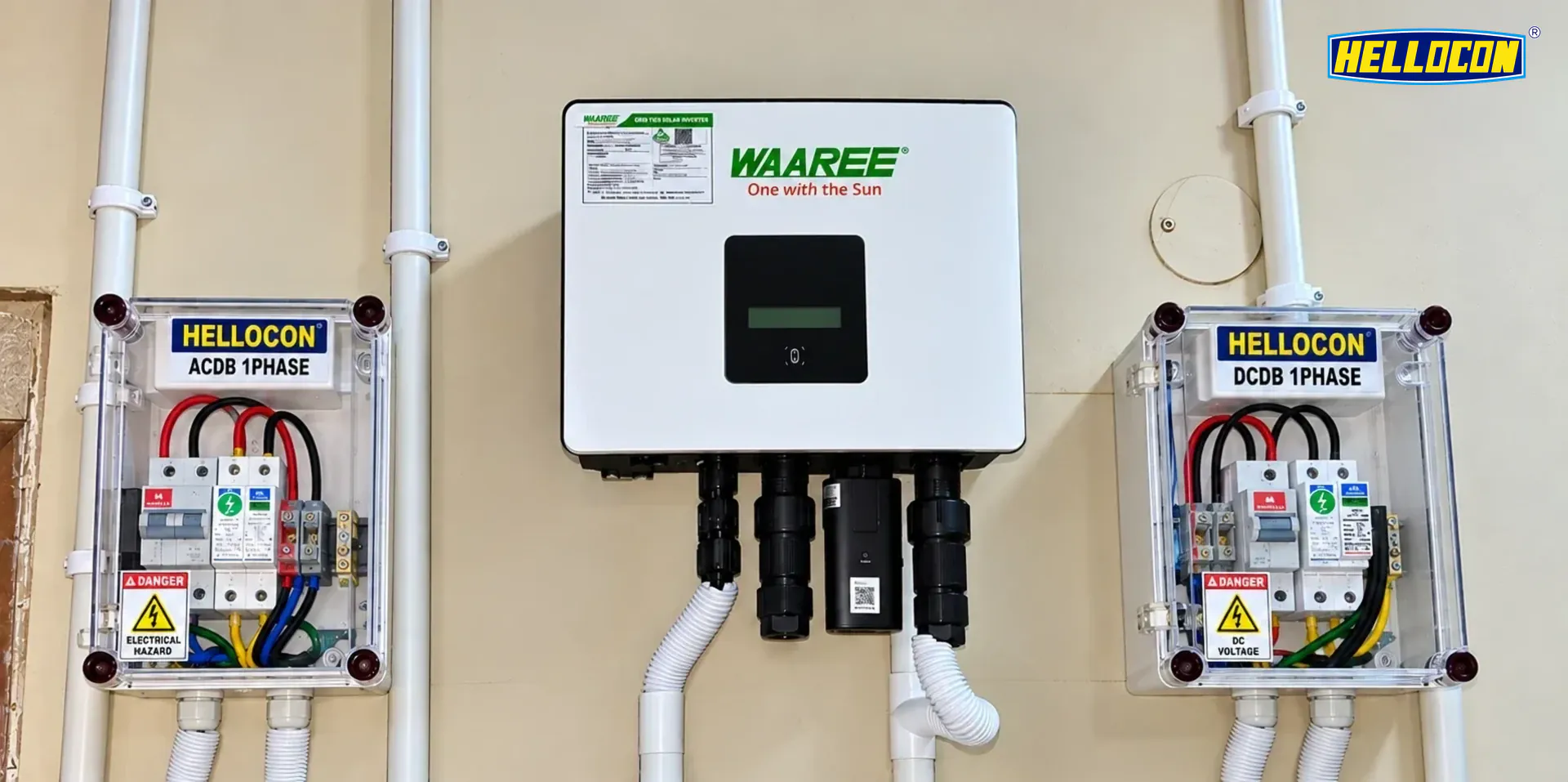

This image concentrates on electrical integration: a wall-mounted inverter, protection enclosures on either side, and conduit routes below. It shows equipment that needs inspection and service access. A homeowner comparing proposals should ask for the inverter location, protection schedule, cable route and handover instructions to be recorded with the installation scope.

The homeowner’s roof provides space for a 3 kW solar installation. The photograph on this page shows the inverter and electrical protection equipment. Solar panels, mounting and electrical integration work together as a complete system; their final arrangement follows the conditions at each home.

A project of this size should be assessed against the household’s electricity use, roof space, shading and connection requirements. The same rated capacity can produce different results at different sites.

Start with a recent electricity bill and an assessment of the roof. Read our residential rooftop solar guide for the survey, equipment and installation process, and the PM Surya Ghar Odisha guide for the official application journey. Subsidy eligibility, approved vendor selection, inspection and metering are decided through the relevant government and DISCOM process.

Before agreeing a proposal, compare the equipment schedule, warranty terms, installation scope and maintenance responsibilities. A quotation should explain the roof arrangement, electrical protections, connection process and any work excluded from the quoted scope.
