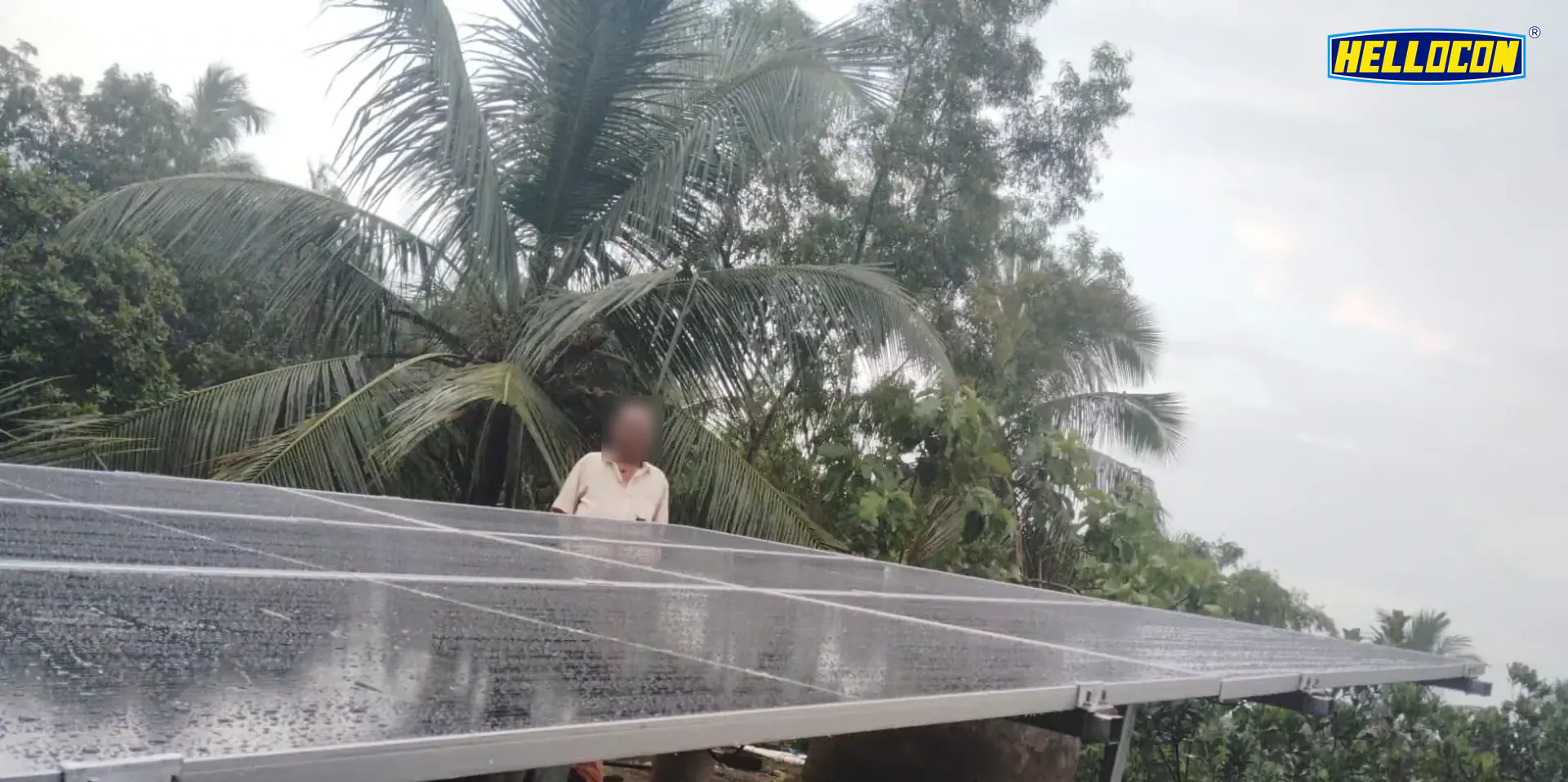

3 kW rooftop solar in Jajpur: array and support frame

This view looks across the panel plane and its supporting frame, with trees visible around the property. The side perspective makes the relationship between modules and mounting easier to see than a front-only image. A comparable roof still needs assessment of supports, fixing, wind exposure, shade and service access.

The homeowner’s roof provides space for a 3 kW solar installation. The photograph on this page shows the photovoltaic array on a residential rooftop. Solar panels, mounting and electrical integration work together as a complete system; their final arrangement follows the conditions at each home.

A project of this size should be assessed against the household’s electricity use, roof space, shading and connection requirements. The same rated capacity can produce different results at different sites.

Start with a recent electricity bill and an assessment of the roof. Read our residential rooftop solar guide for the survey, equipment and installation process, and the PM Surya Ghar Odisha guide for the official application journey. Subsidy eligibility, approved vendor selection, inspection and metering are decided through the relevant government and DISCOM process.

Before agreeing a proposal, compare the equipment schedule, warranty terms, installation scope and maintenance responsibilities. A quotation should explain the roof arrangement, electrical protections, connection process and any work excluded from the quoted scope.
